Pennsylvania Digital Weight Indicators at Low Prices

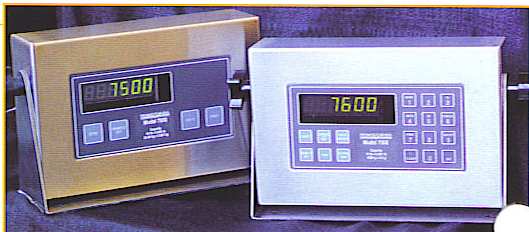

 Pennsylvania 7500+ and 7600+ Digital Weight Indicator

Straight weighing
Agricultural
Truck scales
Floor and bench scales
Tank weighing

A new generation to the 7500+ and the 7600+, the digital readouts provide the same features at the same unbeatable price

Clean, compact new 304 Stainless Washdown Enclosure -- Quick access enclosure and set up -- Adjustable U-Bracket for bench or wall mounting -- Intuitive ONE BUTTON counting and weighing -- Automatic Sample Update for superb counting results -- Powerful 16 bit microprocessor for speed and accuracy -- NEW Audit Trail accountability feature -- Standard RS-232, RS-485, RS-422 and Current Loop interfacing -- Standard Remote Display output connector -- 100% plug and play compatibility with any load cell platform -- Off-the-shelf flexibility for a wide range of applications -- EXCUSIVE Four Year Warranty

TECHNICAL SPECIFICATIONS
24 bit A/D at 60 updates per second
Highly integrated CPU eliminates external lines and connectors
Power for custom and future expansion
Impedance 87 to 2000 Ohms
Sensitivity: 1, 2, or 3 mv/V - Excitation: 10 V

SYSTEM DATA COMMUNICATIONS
• (2) Asynchronous Serial Data Interfaces
• RS-232, RS-485, RS-422 and Current Loop fully addressable
• System Friendly designed for fast set-up
• Time and Date with Battery Back-up (7600+)
• Network Addressable
National Type Evaluation Program (Approval No. 97-009A1) Canadian Weighs & Measures (AM-4869, rev. 3)
